Description

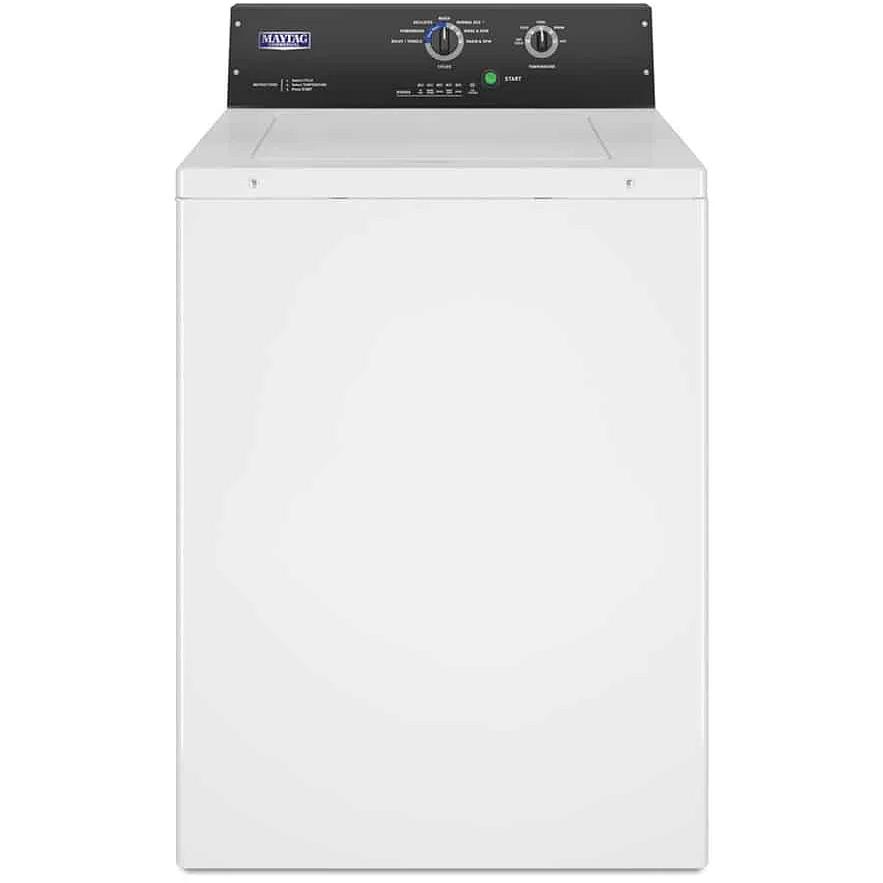

The Maytag Commercial Top Load Washer delivers reliable performance with mechanical controls and a durable 1/2 HP PSC motor. It includes built-in, easy-to-use diagnostics for straightforward maintenance, making it ideal for heavy-duty use.
Features
DEEP-WATER WASH SYSTEM
• Provides optimal wash performance with deep-water wash and rinse cycle options and vigorous cleaning action
• Traditional flex-vane agitator provides four distinct wash profiles — from aggressive to gentle — designed to pull clothes from the top to the bottom of the wash basket
• PowerWash® cycle provides more agitation, hotter water, and an extra rinse for the dirtiest loads
• Traditional flex-vane agitator provides four distinct wash profiles — from aggressive to gentle — designed to pull clothes from the top to the bottom of the wash basket
• PowerWash® cycle provides more agitation, hotter water, and an extra rinse for the dirtiest loads
TRADITIONAL FLEX-VANE AGITATOR
Provides four distinct wash profiles—from aggressive to gentle—designed to pull clothes from the top to the bottom of the wash basket.
CONTROLS TO MEET YOUR NEEDS (MAT23CS and MAT23MN)
Mechanical controls provide a simple user interface with robust, easy-to-use knobs (MAT23CS and MAT23MN)
BUILT TO LAST (MAT23)
• Heavy-duty front panel — robust and easy to remove
• Front-panel accessibility — provides fast entry to the motor, transmission, and wash tub for streamlined self-service
• Built-in, easy-to-use diagnostics — help servicers identify problems quickly
• Watertight, flexible, triple-lip seal — helps keep moisture safely away from the shaft and protects the premium bearings
• Front-panel accessibility — provides fast entry to the motor, transmission, and wash tub for streamlined self-service
• Built-in, easy-to-use diagnostics — help servicers identify problems quickly
• Watertight, flexible, triple-lip seal — helps keep moisture safely away from the shaft and protects the premium bearings
Specifications
General
Coin Box Included
No
Capacity
25 lb
Cylinder Volume
2.9 Cu. Ft.
Motor
1/2 hp
Maximum Speed
700 rpm
G-Force
144 g
Color
White
Manufacturer Color
White
Features
Additional Information
• Operating Pressure — psi (bar): 20–100 (1-8)
• Inlet Hose Length — ft (m): 6 (1.8)
• Drain Hose Length — ft (m): 4 (1.3)
• Mechanical Controls
• Built-in Easy-to-Use Diagnostics
• Traditional Flex-Vane Agitator
• Deep-Water Wash System
• Inlet Hose Length — ft (m): 6 (1.8)
• Drain Hose Length — ft (m): 4 (1.3)
• Mechanical Controls
• Built-in Easy-to-Use Diagnostics
• Traditional Flex-Vane Agitator
• Deep-Water Wash System
Electrical Information
Information
• 120 V
• 60 Hz
• 15 A
• 60 Hz
• 15 A
Dimensions
Width
27 inch(es) / 68.58 cm
Height
42.5 inch(es) / 107.95 cm
Depth
26 inch(es) / 66.04 cm
Weight
145 lb(s) / 65.77 kg
Additional Dimensions
Lid Opening: 17"
Shipping Dimensions
Width
29 inch(es) / 73.66 cm
Height
49 inch(es) / 124.46 cm
Depth
27.5 inch(es) / 69.85 cm
Weight
163.01 lb(s) / 73.94 kg
Warranty
Warranty
Limited 5 Years Parts Only
